UN38.3 marking and labeling requirements for lithium batteries

UN38.3 is a certification to ensure the safety of air transportation of batteries and avoid unsafe incidents. Have you understood the various labeling requirements of UN38.3?

UN38.3 label introduction

The detailed requirements for each label are as follows:

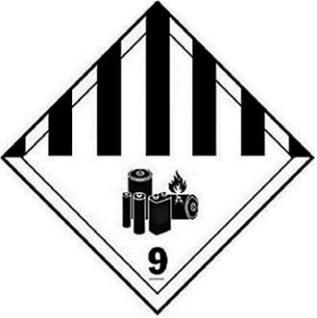

Class 9 Lithium Battery Hazard Label:

The label is a diamond pattern, the upper part has 7 vertical strips, the lower part is the battery pack and a damaged and flaming graphic; the bottom corner is the number "9" underlined.

Graphic black, white background

Minimum label side length 100x100mm

Lithium Battery Mark:

The marked frame is a rectangle with a red diagonal stripe. The graphic is a battery pack and a damaged and flame-emitting pattern. The lower part is the corresponding lithium battery UNXXXX number. The contact number of the last line. The height of the UN number font should not be less than 12mm; red; The width of the diagonal stripes is 5mm; the graphics in the frame are black, with a white background or a high-contrast background color.

The minimum mark side length is 120x110mm or the outer package requires a small mark of 105x74mm; the mark can be printed on the outer package.

Cargo Aircraft Only

Graphic black, background orange

Minimum marking side length 120x110mm

other request:

1. In addition to the lithium battery mark that can be printed on the outer packaging, other stickers should be printed on the label;

2. If multiple labels and marks need to be posted on a package, they should be posted on the same side and cannot be folded, and the side should be placed outward for easy viewing;

3. The label should ensure the quality and sufficient viscosity, can withstand exposure to the outdoor environment, its firmness and clarity will not be reduced, and ensure that there is a background pattern with large color contrast.
